Corrosion Analysis for Fire Protection Pipe

How is a Corrosion Analysis Done for a Fire Protection System?

Corrosion analysis is vital for maintaining the integrity and functionality of fire protection systems. Understanding the causes and effects of corrosion helps in identifying potential issues and taking proactive measures to prevent system failures. This article delves into the methods used in corrosion analysis for fire protection systems, the importance of regular assessments, factors influencing corrosion in fire sprinkler systems, and effective mitigation and maintenance strategies.

Understanding Corrosion in Fire Protection Systems

Corrosion is a prevalent issue in fire protection systems, particularly in fire sprinkler systems. Understanding its causes and effects is crucial for ensuring optimal performance and reliability. Corrosion refers to the gradual deterioration of metals due to chemical reactions with their environment. In fire sprinkler systems, oxygen is the primary cause of corrosion, as it reacts with steel piping in the presence of water.

The process of oxygen corrosion in wet pipe systems is driven by oxygen trapped in pockets of air within the pipes. Once water fills the system, oxygen molecules from these air pockets dissolve into the water, reacting with the iron in the steel pipes. This reaction occurs quickly, within minutes of the oxygen coming into contact with the pipe surface, resulting in the formation of rust and the pitting of the pipe walls. Over time, this can cause leaks, system failure, and obstruct water flow.

It’s important to note that most corrosion in wet pipe systems occurs near trapped air pockets, where the concentration of dissolved oxygen is highest. Contrary to some misconceptions, the small amount of dissolved oxygen in the fill water is not the main cause of corrosion. Instead, the oxygen in the trapped air accounts for the majority of the oxygen corrosion risk. In fact, trapped air pockets contain significantly more oxygen than the water itself, making the removal of these air pockets a more effective corrosion control strategy than treating the water.

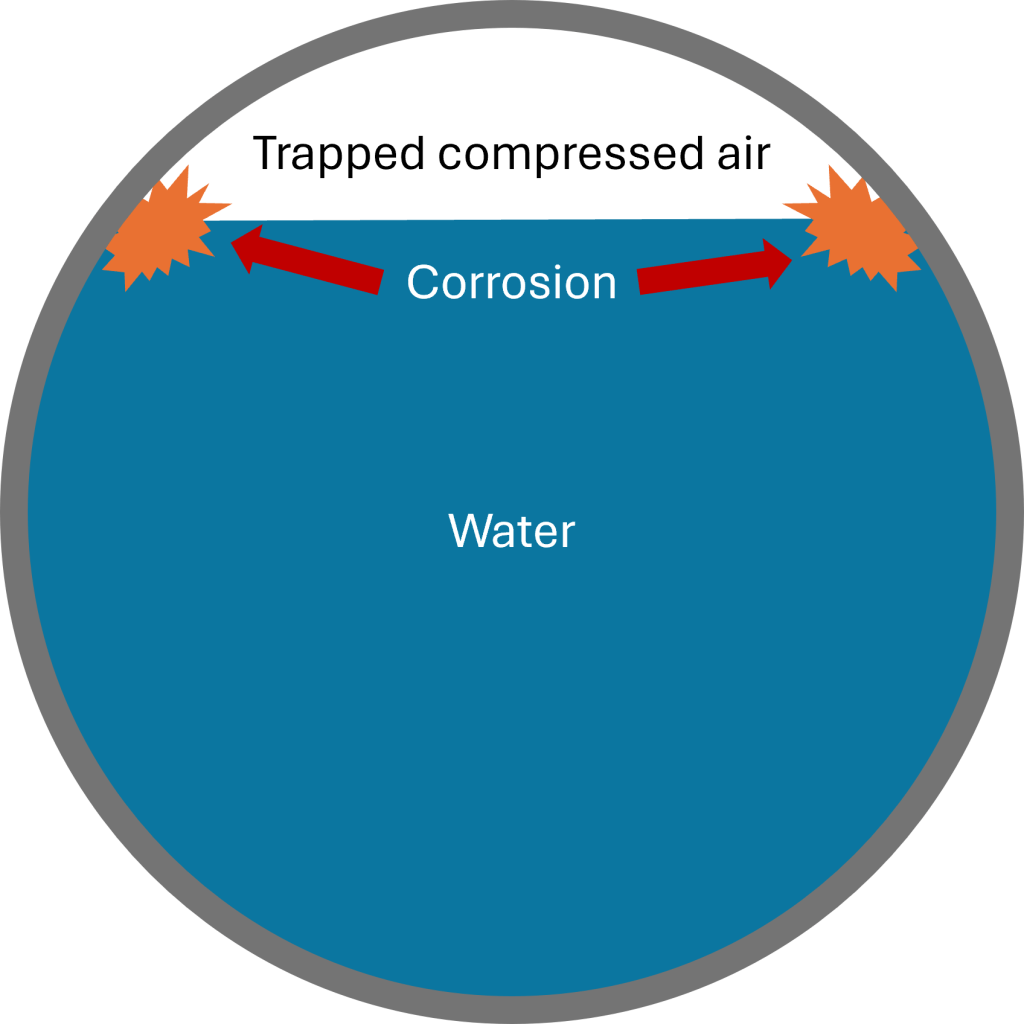

How corrosion occurs (diagram)

Methods Used in Corrosion Analysis

Corrosion analysis is crucial for maintaining fire protection systems. By identifying signs of corrosion, assessing its extent, and determining causes, potential solutions can be implemented to prevent further damage. Several methods are used in corrosion analysis for fire protection systems:

Visual Inspection: This primary technique involves examining fire protection system components for visible signs of corrosion, such as rust, pitting, discoloration, or flaking. Highly trained professionals visually inspect pipes, fittings, valves, and other equipment to identify corrosion-prone areas.

Non-Destructive Testing: Techniques such as ultrasonic testing, radiographic testing, and magnetic particle testing assess the extent of corrosion without damaging the system. These methods detect corrosion, measure its thickness, and evaluate the structural integrity of affected components.

Pipe Sample Analysis: Samples from the fire protection system are analyzed in a controlled environment to determine the root causes of corrosion and explore potential solutions. Understanding the underlying causes of corrosion allows for appropriate mitigation measures to be taken. This derives from newer technology utilized by our partner company, Engineered Corrosion Solutions (ECS).

Importance of Regular Corrosion Assessments

Regular corrosion assessments are essential for maintaining the integrity and functionality of fire protection systems. Identifying and addressing corrosion issues promptly can prevent potential failures and malfunctions, ensuring the system operates effectively when needed most.

Compliance with industry standards and regulations is another critical reason for regular corrosion assessments. The National Fire Protection Association (NFPA) sets guidelines for corrosion control in fire protection systems. Adhering to these standards ensures that systems are safe, reliable, and compliant with legal requirements.

Moreover, regular corrosion assessments help minimize the risk of costly repairs or system replacements. Corrosion can weaken the structural integrity of pipes, valves, and other components, leading to leaks, malfunctions, or complete system failure. By proactively addressing corrosion issues, property owners can avoid expensive emergency repairs and the need to replace the entire system, saving time, money, lives and property.

Corrosion inspection for fire protection systems

Factors Influencing Corrosion in Fire Sprinkler Systems

Corrosion in fire sprinkler systems can be influenced by several factors. Understanding these factors is crucial for effective corrosion analysis and prevention. Key factors contributing to corrosion development include:

  1. Water Quality: The quality of water used in fire sprinkler systems significantly affects corrosion rates. Factors such as pH level, dissolved oxygen content, and mineral content influence the corrosiveness of the water. High mineral content or acidic water can accelerate corrosion, while low mineral content or alkaline water can reduce corrosion rates.
  2. Chemical Additives: Chemical additives like corrosion inhibitors or biocides are often used in fire protection systems to mitigate corrosion. Their effectiveness depends on factors such as concentration, compatibility with system materials, and regular maintenance.
  3. Environmental Conditions: Environmental factors such as temperature, humidity, and the presence of contaminants can influence corrosion. High humidity levels or exposure to corrosive gases can increase corrosion rates. Monitoring and controlling these environmental conditions can aid in corrosion prevention.

By considering these factors, a comprehensive corrosion analysis for a fire protection system can be conducted. Understanding water quality and monitoring environmental conditions are crucial for corrosion prevention and system longevity.

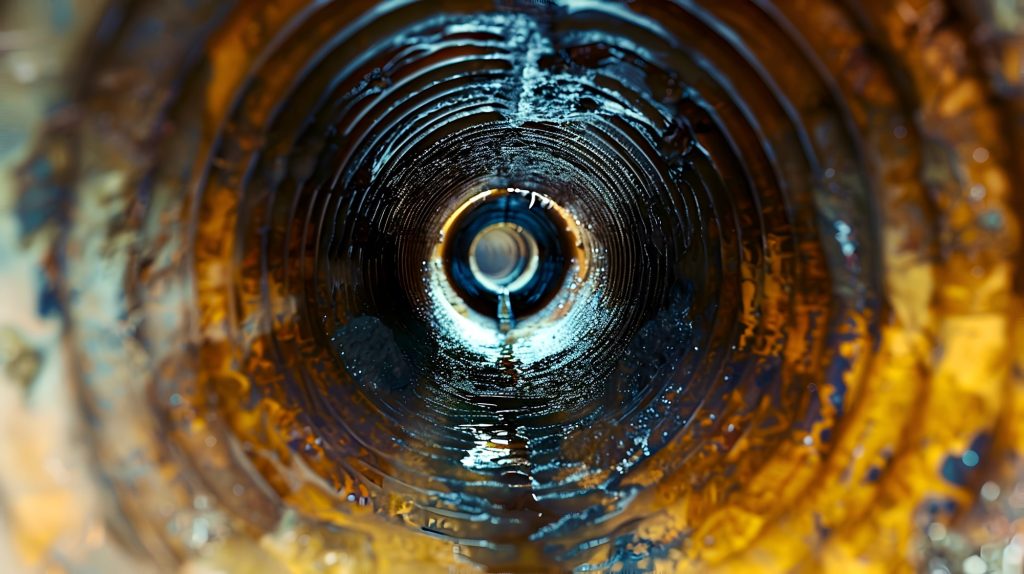

Inside Corroded Pipe

Corrosion Mitigation and Maintenance Strategies

Implementing corrosion mitigation and maintenance strategies is crucial for ensuring the longevity and effectiveness of fire protection systems. Corrosion can significantly impact the performance and reliability of system components, compromising the safety of the entire system.

Proper Maintenance Practices: Regular inspections should be carried out to identify signs of corrosion or deterioration. Prompt repairs or replacements should be made to prevent further damage. Routine maintenance tasks, such as lubricating moving parts, tightening connections, and inspecting electrical components, should also be performed to ensure the system remains in optimal condition.

Periodic Cleaning and Flushing: Periodic cleaning and flushing of fire sprinkler systems are vital for removing corrosion deposits. Over time, corrosion can accumulate within the pipes, obstructing water flow and reducing the system’s effectiveness. Flushing the system and conducting thorough cleaning can remove corrosion deposits, restore efficiency, and prevent potential clogs or blockages.

Purging the Oxygen: The most effective strategy for controlling corrosion in wet pipe systems is the use of This process displaces oxygen in the system with nitrogen gas before the pipes are filled with water, effectively preventing oxygen corrosion. WPNI has been successfully implemented in numerous fire sprinkler systems, eliminating corrosion entirely in those treated.

Incorporating these corrosion mitigation and maintenance strategies into the fire protection system’s care plan minimizes the risk of corrosion-related issues. Regular inspections, proper maintenance, and periodic cleaning help maintain the system’s functionality and extend its lifespan, ensuring it can effectively protect against fires when needed. Luckily, Western States Fire Protection in tandem with ECS has the capabilities to inspect, analyze, and repair or replace a system that has been affected by corrosion. If you’re company is looking for this service, fill out the form below, and someone from the office closest to you will reach out with more information.
